| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | IME18-05BPSZC0SF38 |
| Body Style | Cylindrical |
| Diameter | 18 mm |
| Dimensions | 69 x 18 mm |
| Frequency, Switching | 1 kHz |
| Housing Material | Nickel Plated Brass |
| IP Rating | IP67 |
| Length | 2.716" (69mm) |
| Maximum Operating Temperature | 75 C |
| Measurement Range | 5 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | M18 Threaded Flush |
| Operating Temperature, Maximum | 75 C |
| Operating Temperature, Minimum | -25 C |
| Output | PNP |
| Primary Type | Inductive Proximity Sensors |
| Shielding | Shielded |
| Shop By | Factory Choice |
| Size, Thread | M18 x 1 |
| Standards | RoHS Compliant, UL Approved, cULus Listed, EN 60947-5-2 |
| Supply Voltage | 10-30 VDC |
| Terminal Type | M12 Connector |
| Thread Size | M18 x 1 |
| UPC Code | 5056112069874 |
Overview
Standard Range

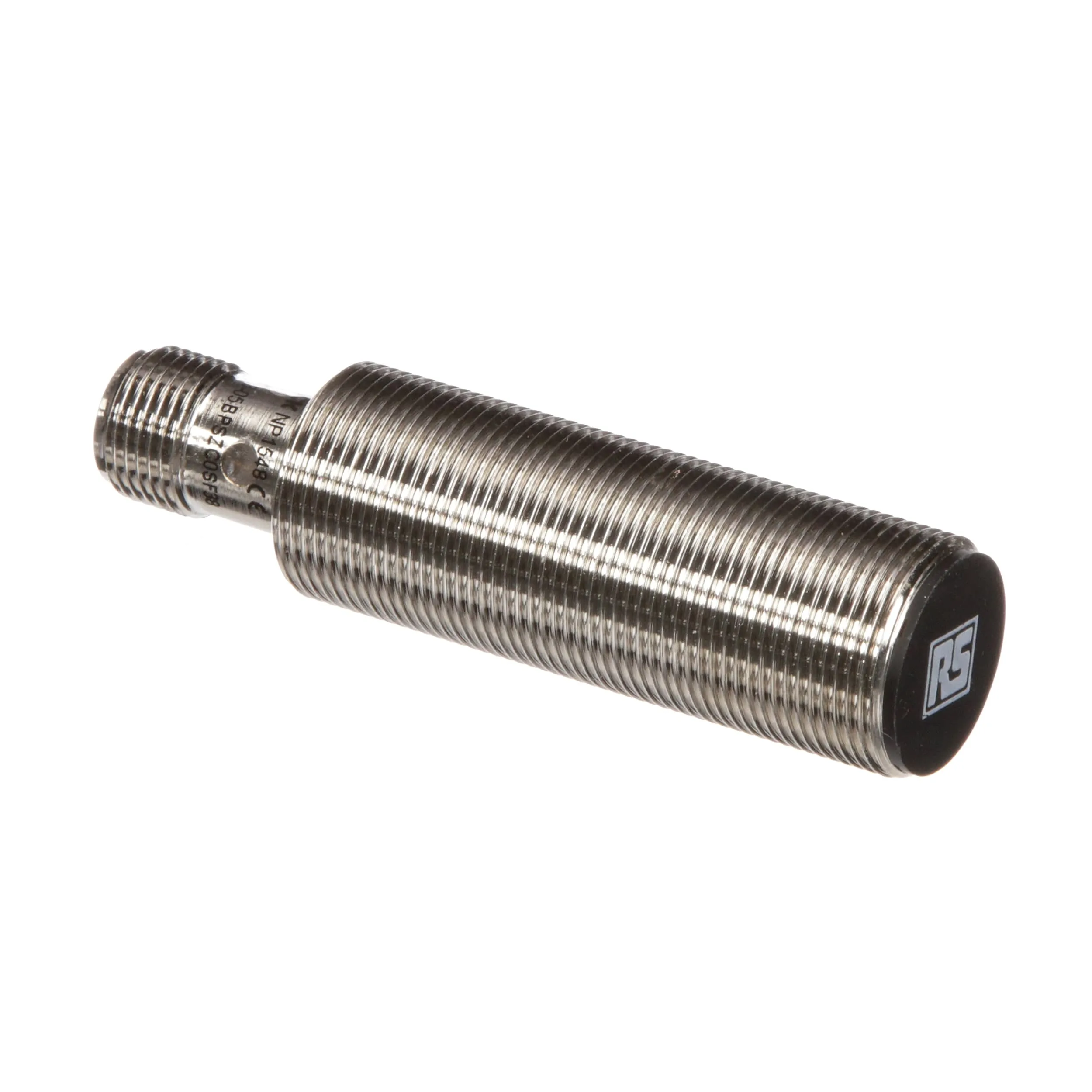

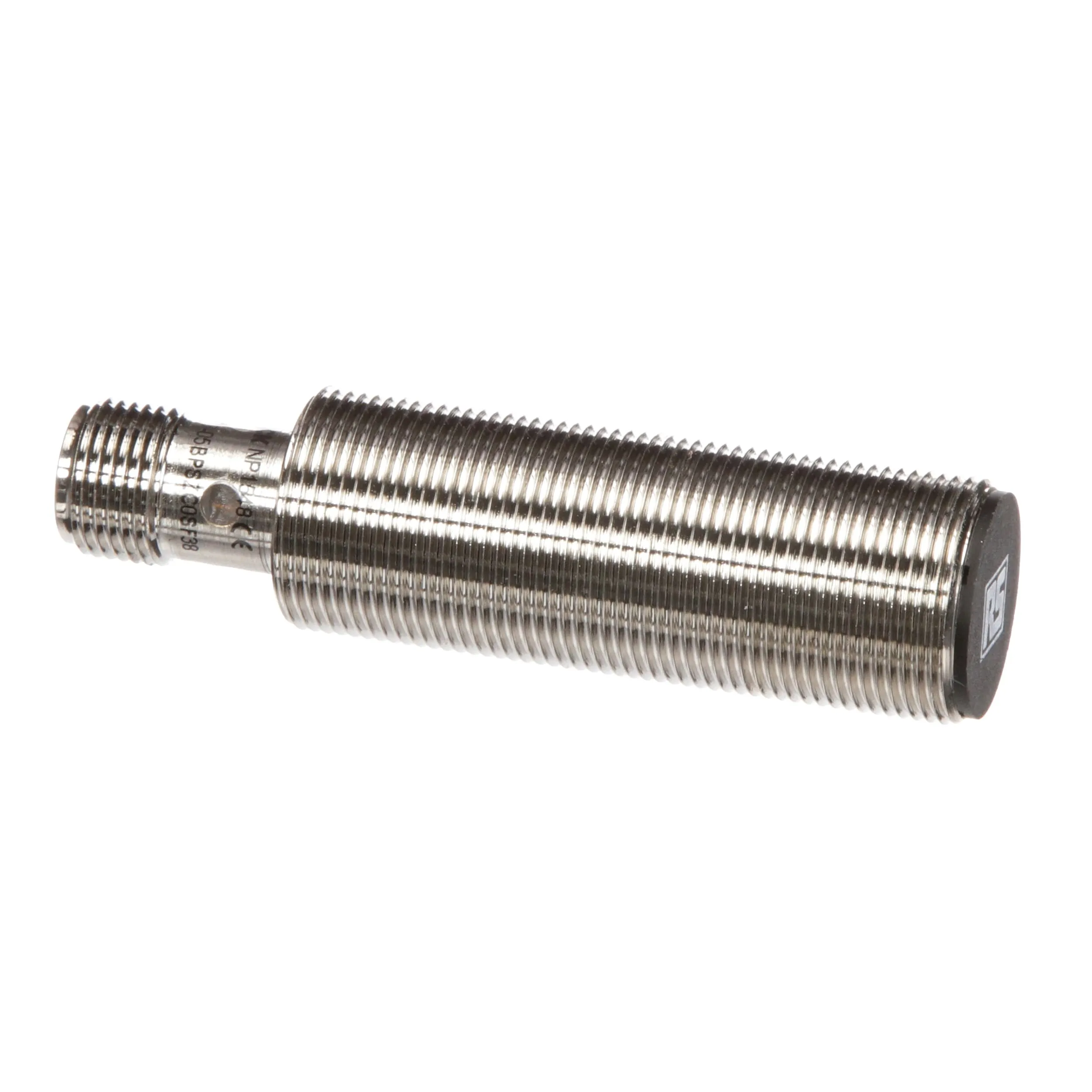

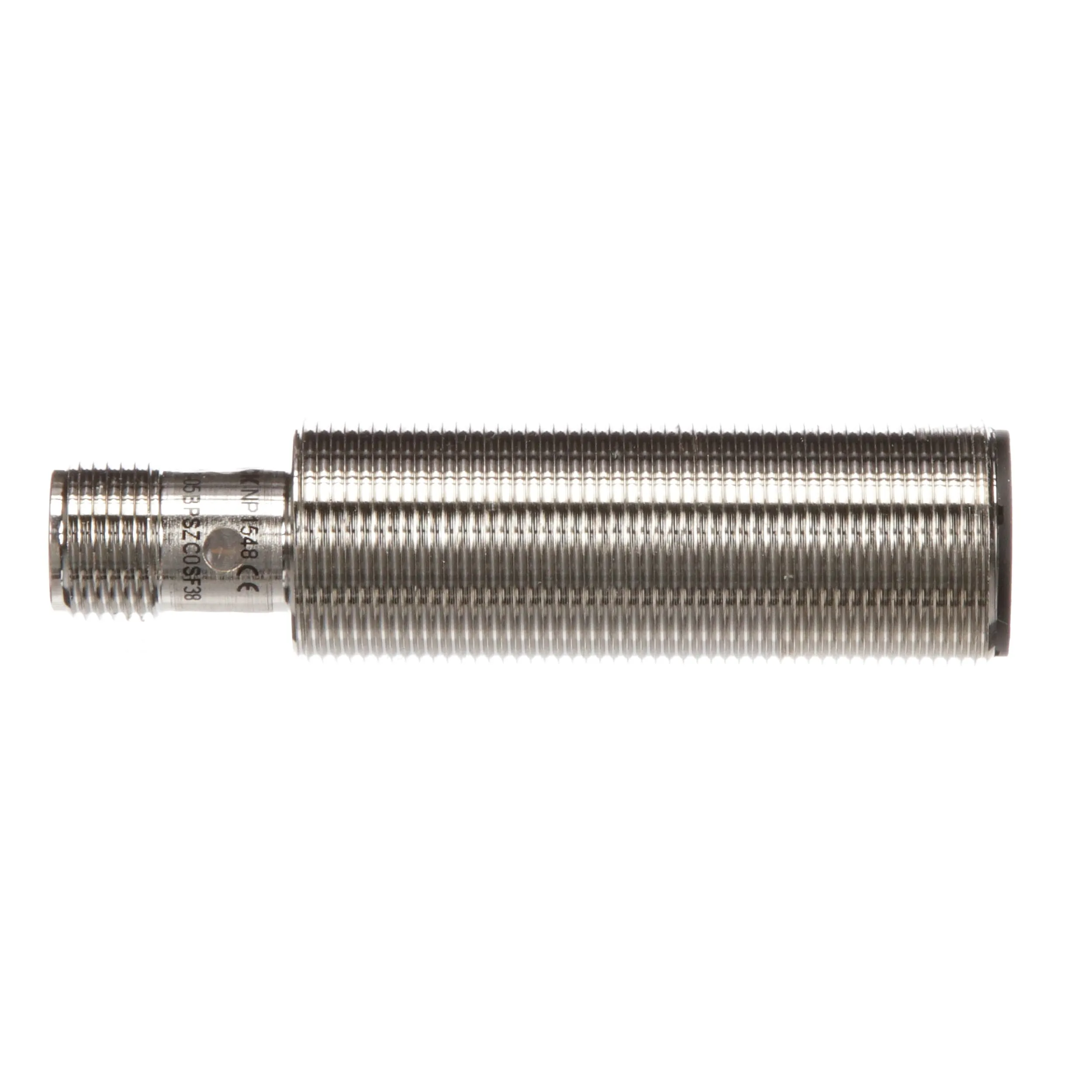

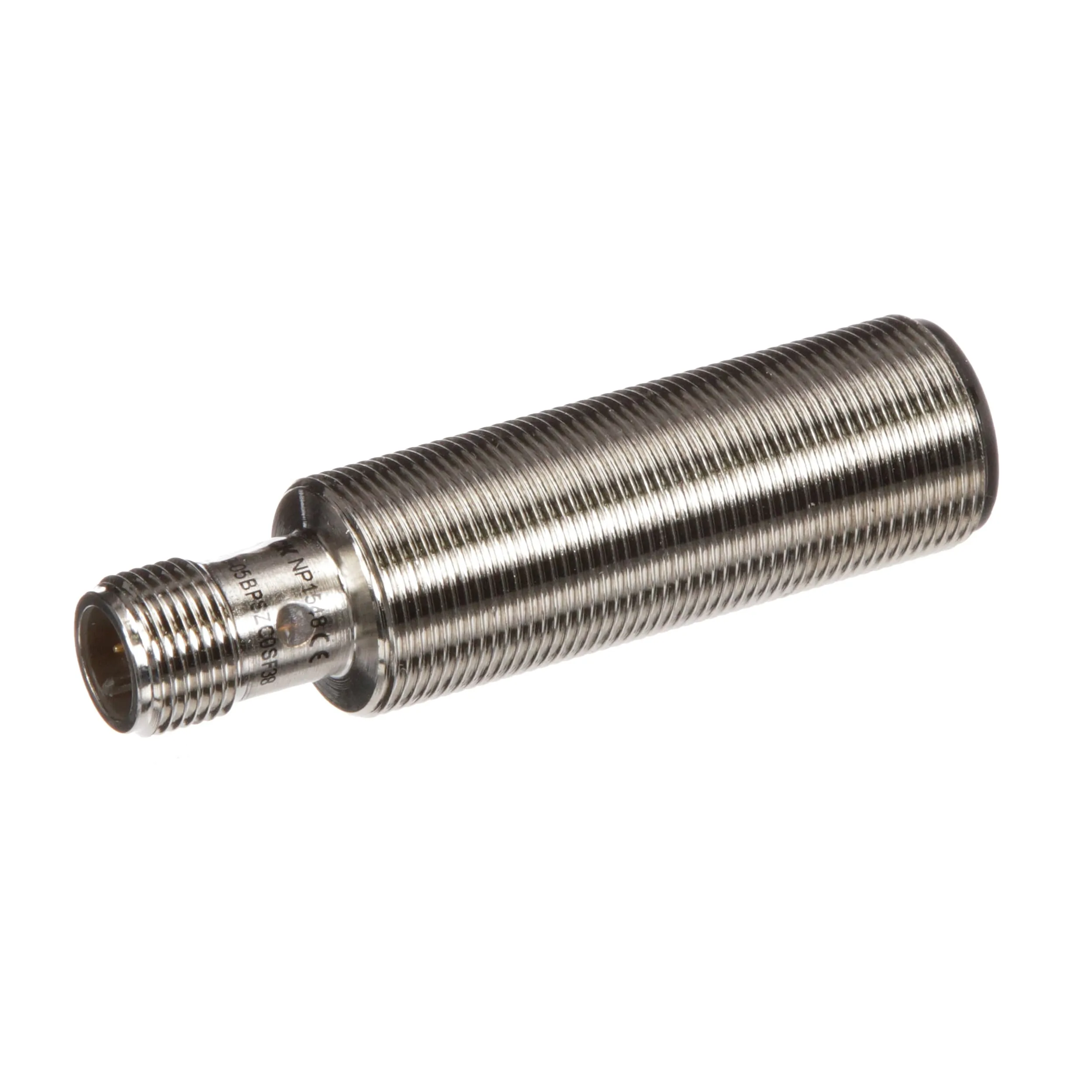

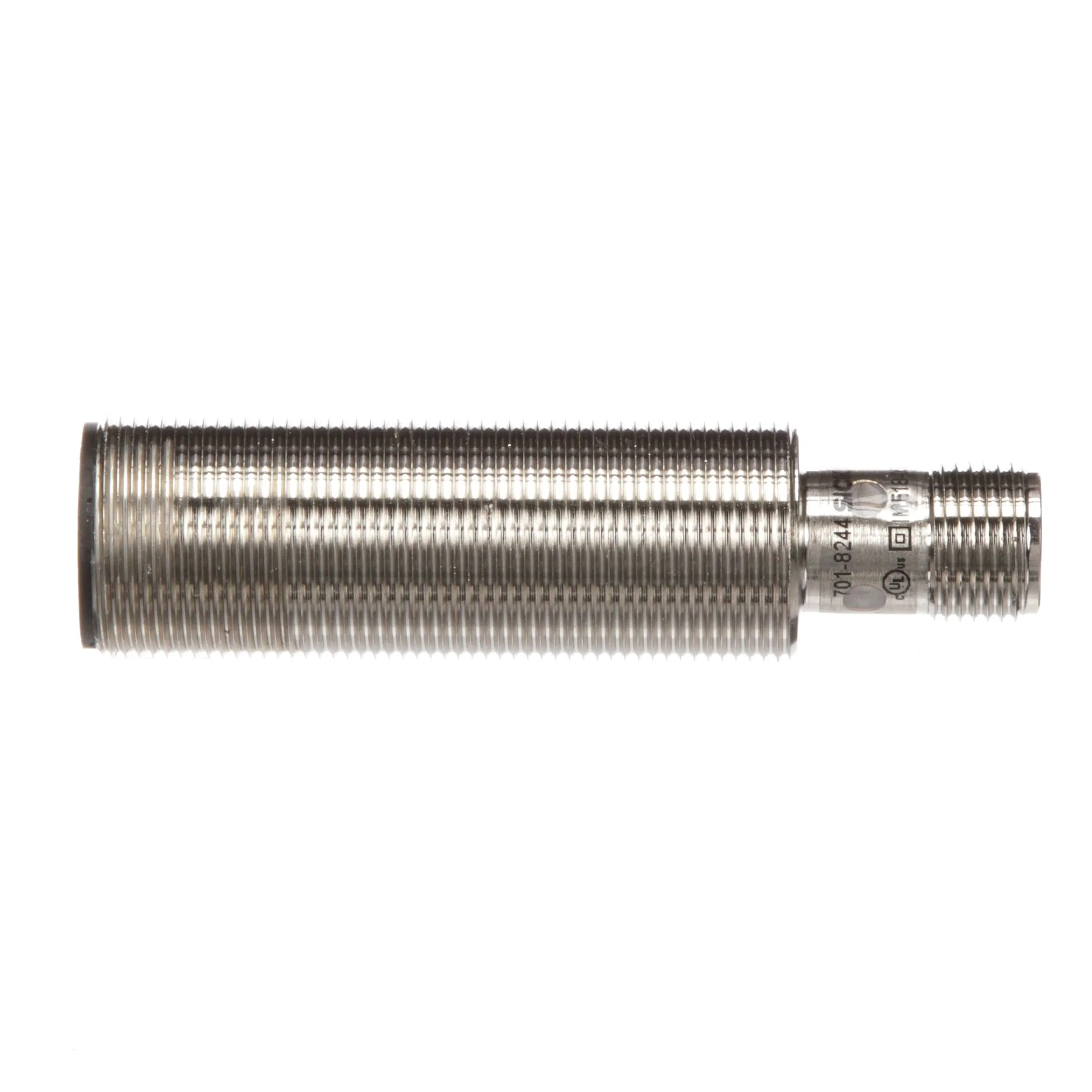

RS Pro inductive sensors offer precise detection, long-term reliability and high accuracy. The sensors are completely encapsulated, which greatly increases shock and vibration resistance.
