KEY FEATURES
- 64x64 processing matrix
- Sound management installation
- 12x12 local analog I/O
- I/O Port for audio networking, up to 128x128
- Dante 96kHz 64x64 option card
- 128x128 built-in SLink expansion port
- 64 configurable processing outputs
- 8x Automatic Mic Mixers
DESCRIPTION

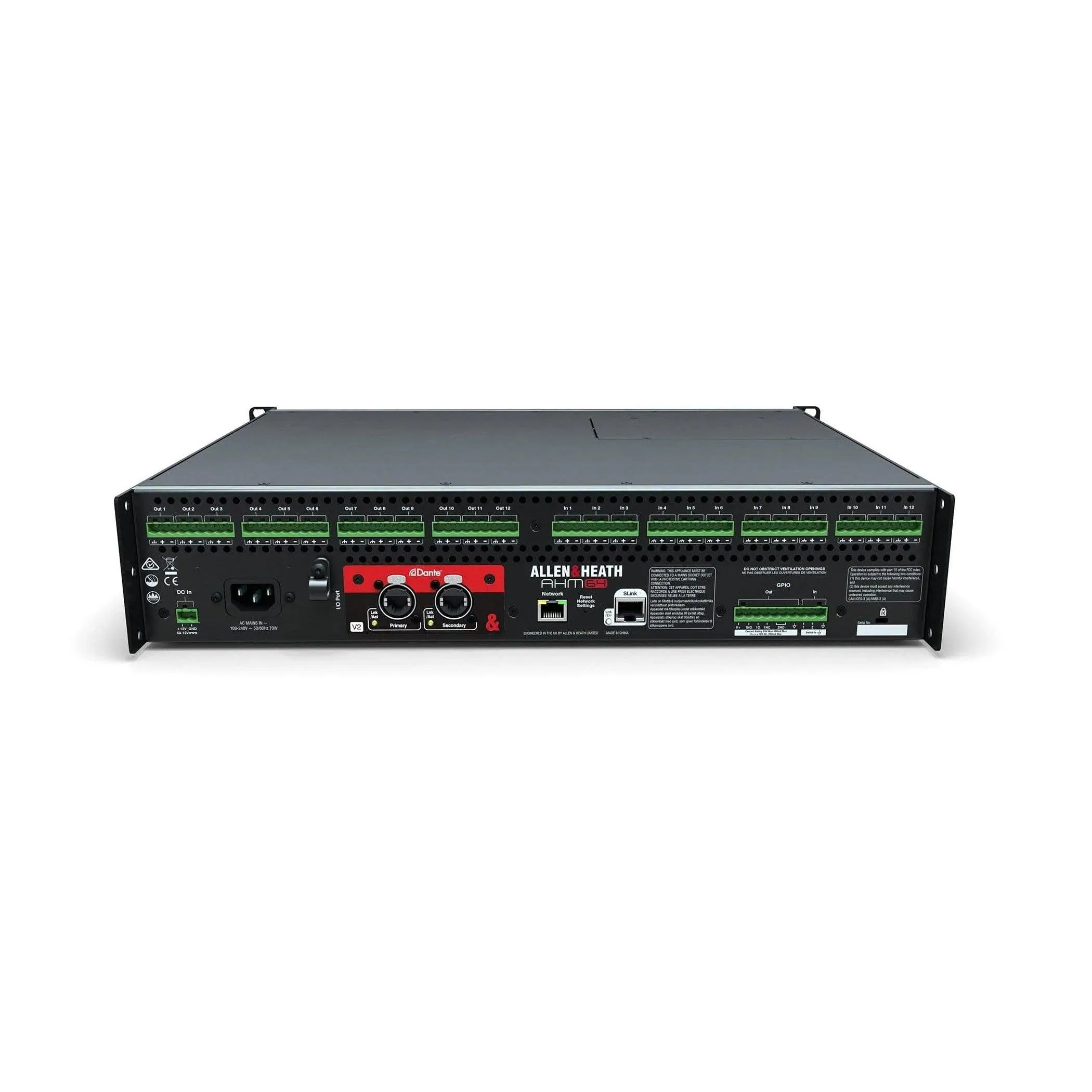

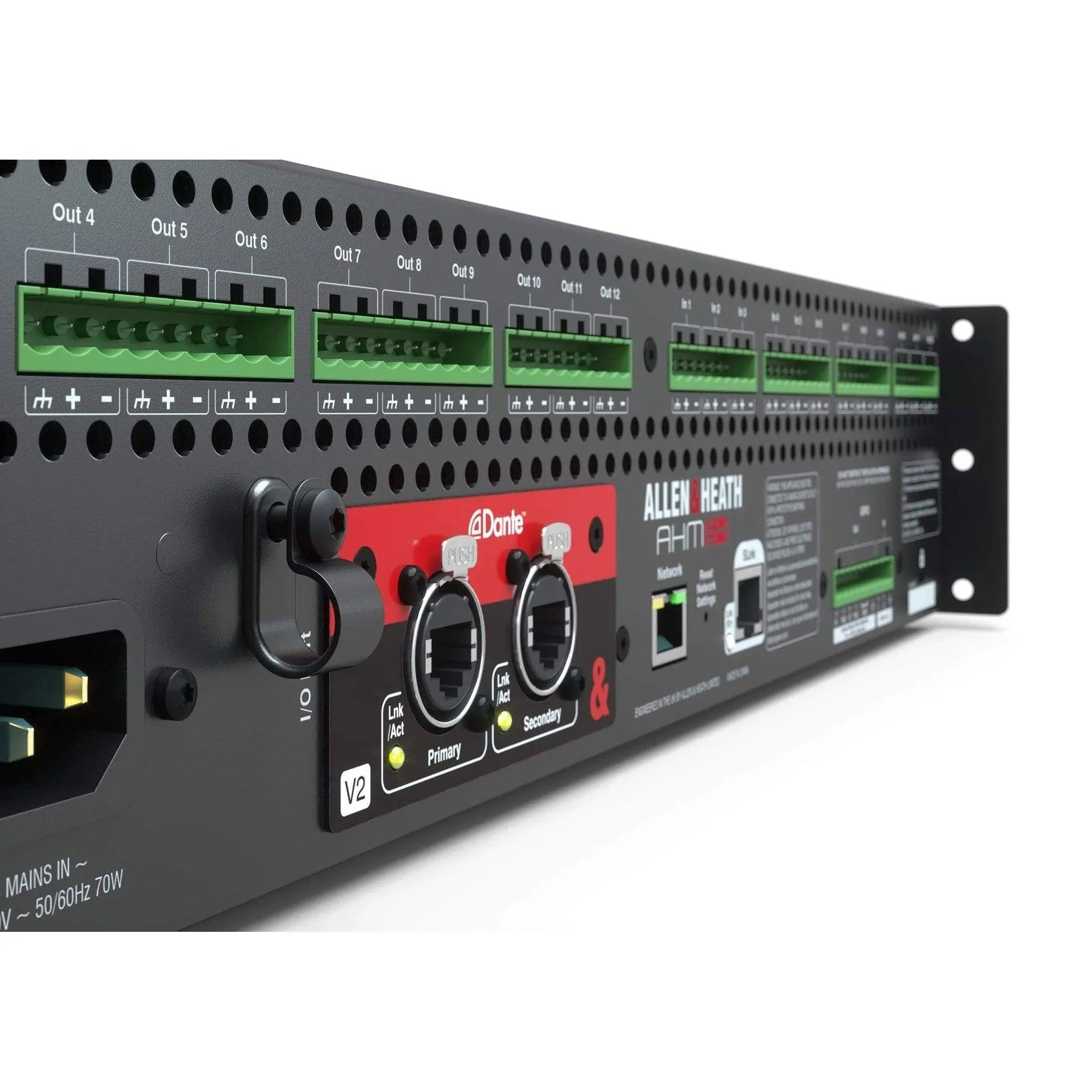

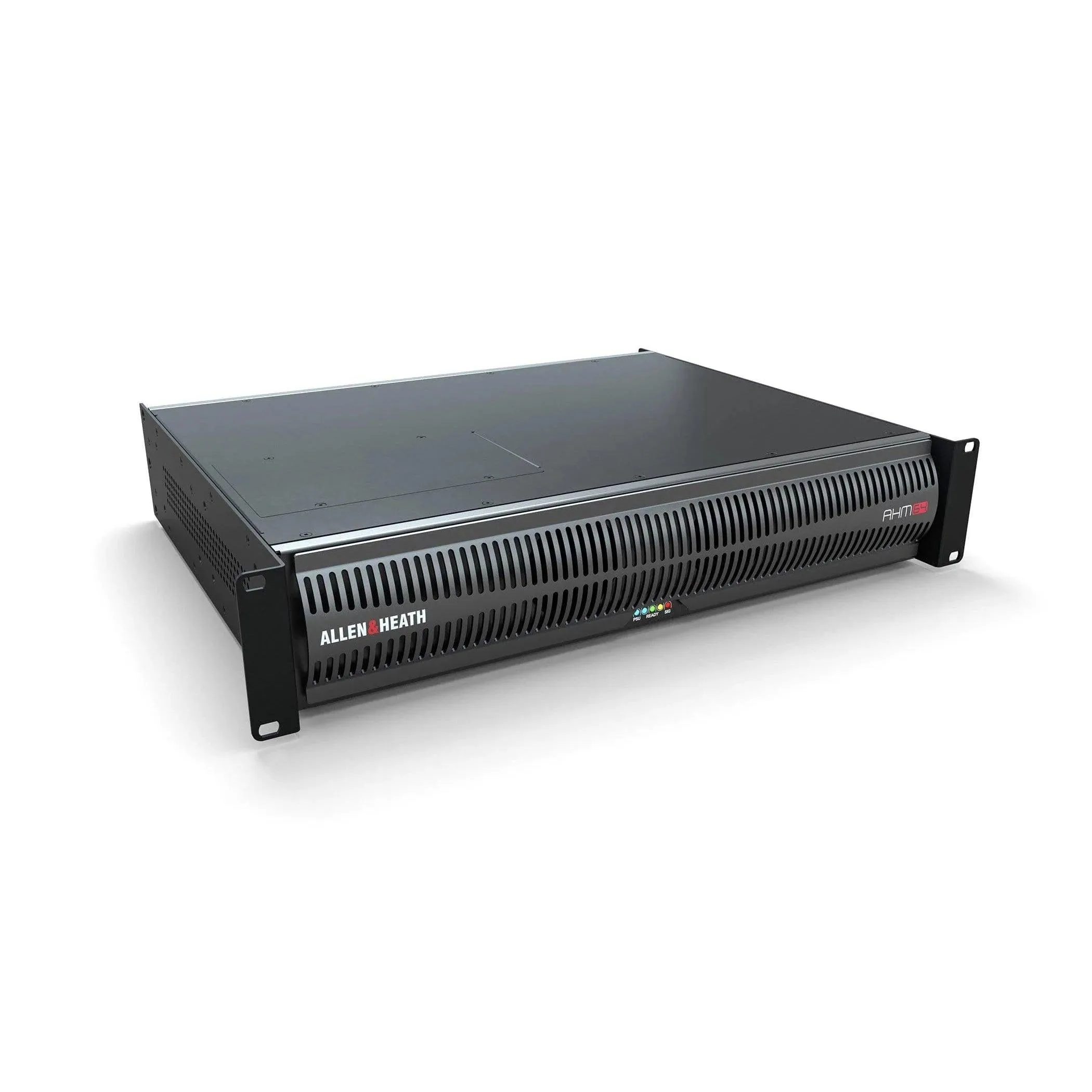

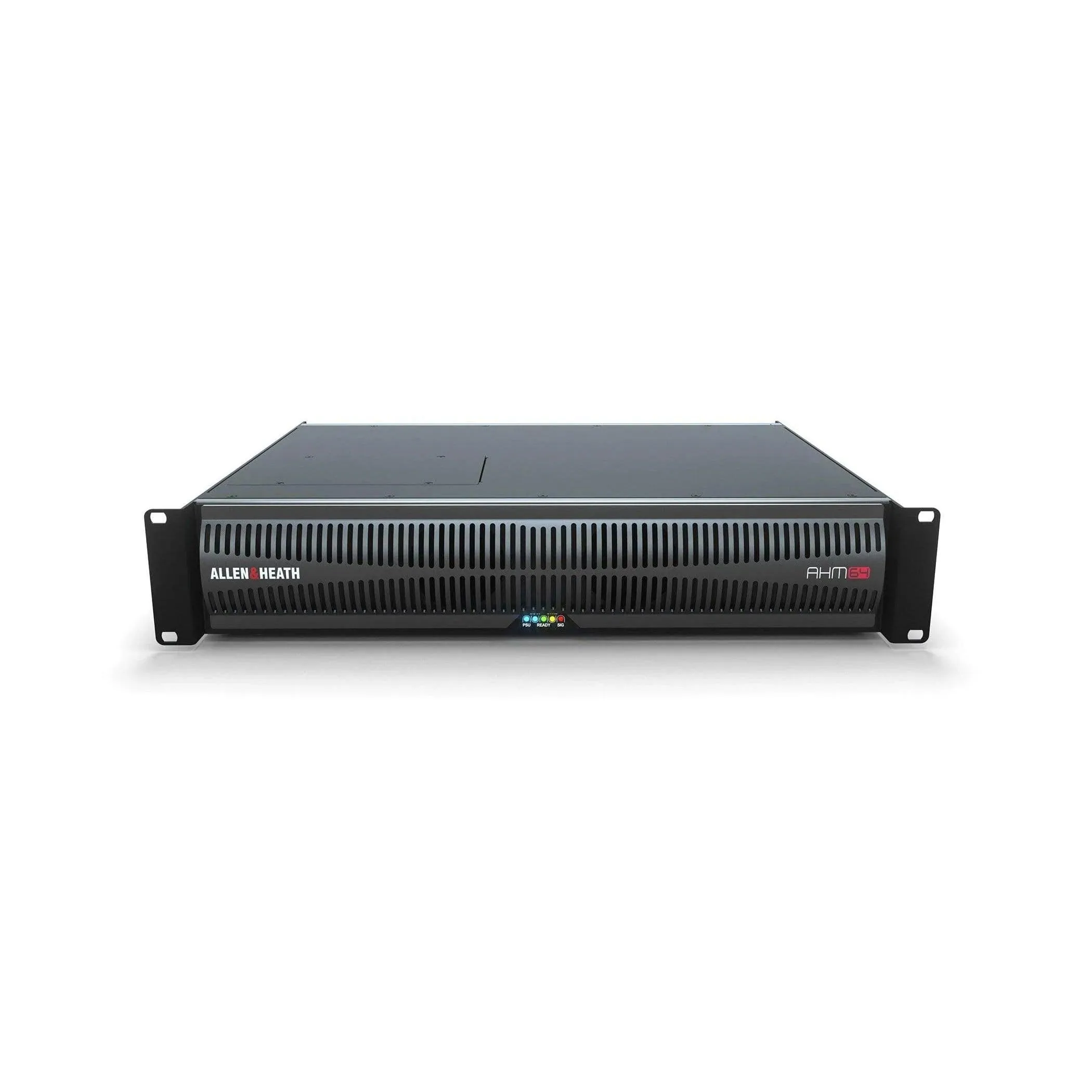

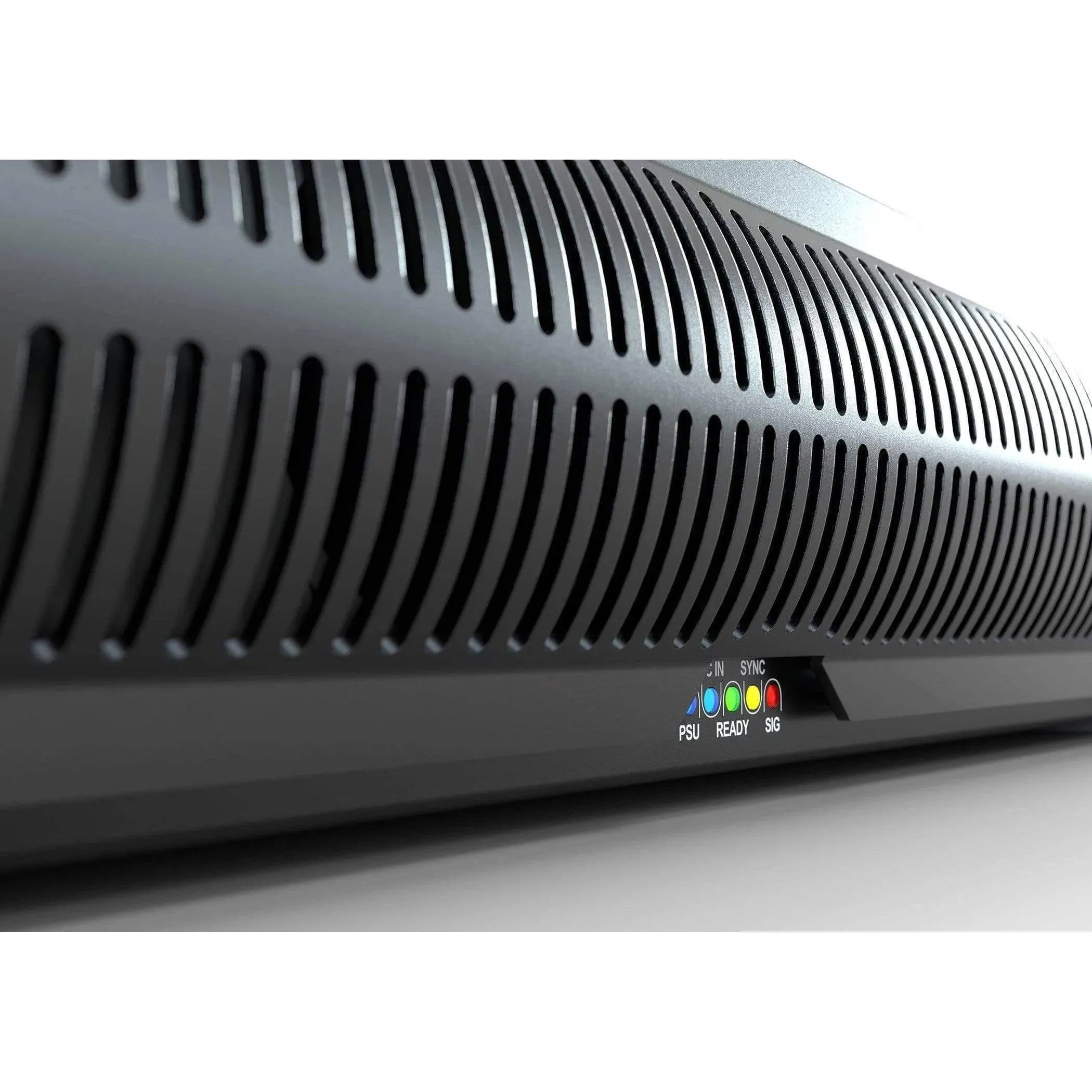

Allen & Heath provide the AHM-64, a powerful 64x64 Audio Matrix Processor supported by a comprehensive ecosystem of scalable I/O, control, and Dante solutions. Designed to excel in corporate, retail, hospitality, and education environments, AHM-64 allows integrators to quickly create systems that build from a single boardroom to a complete campus.
AHM-64’s SLink port allows plug 'n play connection to up to eight remote expanders from Allen & Heath’s extensive Everything I/O range, which includes a wall mount, rack, and portable options. With up to 268 routable system inputs and outputs, AHM-64 can cater for projects ranging from a single room to large, distributed spaces.
An AHM-64 system can be controlled using our range of remote controllers, GPIO, and 3rd party devices. With up to 96 IP remote controllers over a standard TCP/IP network, every room can enjoy local volume control, source select, and preset recall.
Designing the perfect user interface for each type of user has never been so easy. Custom Control is a customizable, cross-platform control app, providing elegant, bespoke control over an AHM-64 system.
